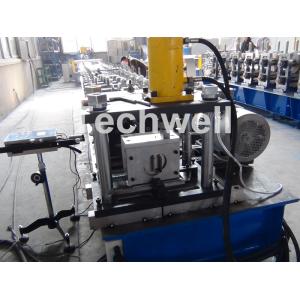

Solar Strut Channel Cold Roll Forming Machine With Servo Feeding Device & Press Punching Machine

Brand Name : TECHWELL

Model Number : TW-CCM

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Set

Price : Contact us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Delivery Time : 55-65 working days

Packaging Details : Standard packing

Forming Material : GI

Forming Material Thickness : 1.0-2.5mm

Working Speed : 0-15m/min

Forming Motor : 22KW

Shaft Diameter : 70mm

Hydraulic Power : 4.0KW

Contact Now

Solar Strut Channel Cold Roll Forming Machine With Servo Feeding Device & Press Punching Machine

Main Specifications of Solar Strut Channel Roll Former

Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
Leveling Device 7 Rollers type leveling upper 3 rollers, lower 4 rollers
Motor Power 3.0KW
Servo Feeding Device Servo motor power 0.85KW
Servo motor brand YASKAWA (Japan)
To exact accurately feed the sheet into punching machine according to the set program
Press Machine Device Punching Type Press machine type
Punching Pressure According to customer's requirements
Punching Mold Size According to drawing
Punching Mould 1 set
Main Power 7.5KW
Main Roll Forming Part Forming material thickness 1.0-2.5mm
Forming material type GI
Forming motor about 22KW
Drive type Chain drive
Shaft material 40Cr high grade steel tempering treatment (HB220-260)
Bearing HRB bearing
Roller material GCr15 steel, HRC 58-62 and roller surface with hard chrome 0.05mm
Forming station about 24 stations
Turkey head for adjust the finished profile before cutting
Hydraulic Cutting & Hydraulic Station Cutting type Hydraulic post-cutting after roll forming
Cutting blade material Cr12Mov, Quench treatment, HRC58-62
Hydraulic power 4.0KW
Hydraulic pressure 15Mpa
Cutting tolerance +/-1.5mm

Working Flowing

Decoiler / Uncoiler --- Leveling --- Servo Feeding --- Press Machine for Punching --- Main Roll Forming ---

Hydraulic Cutting --- Support Table

Main Components

Decoiler / Uncoiler 1 Unit
Leveling Device (7 Rollers) 1 Unit
Servo Feeding 1 Unit
Servo Control System 1 Unit
Press Machine 1 Unit
Main Roll Forming 1 Unit
Hydrauic Cutting 1 Unit
Hydraulic Station 1 Unit
PLC Electrical Control Board 1 Unit
Support Table 1 Unit

Reference Profile Drawing

Solar Strut Channel Cold Roll Forming Machine With Servo Feeding Device & Press Punching Machine

Competitive Advantages

  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

More Machine Pictures

Solar Strut Channel Cold Roll Forming Machine With Servo Feeding Device & Press Punching Machine

Contacts of WUXI TECHWELL

Company Wuxi Techwell Machinery Co.,LTD
Website www.cold-rollformingmachine.com
www.roofrollformingmachine.com
www.wxtechwell.com
Mobile / Whatsapp / Wechat 0086-15861597732( Lemon )
E-Mail / Skype sales@wxtechwell.com
